Thread: Bolt catch not catching on last round

  1. #21
    Join Date
    Mar 2008
    Posts
    545
    Feedback Score
    0
    Quote Originally Posted by chaarp1 View Post
    ...what im looking at them right now...i used the img link off photobucket...... do i see something you dont...i posted the text then in my next post posted just photos...do i use the html link or ....????
    Roger that. Photos are up now.

    What is the length of the buffer and the free length of the buffer spring?
    Last edited by 7 RING; 12-19-12 at 21:23.

  2. #22
    Join Date
    Dec 2008
    Posts
    196
    Feedback Score
    0
    The buffer spring is too short for a standard carbine spring. Did this 9" spring come from DD?
    NRA Lifetime Member
    Firearms and Diesel Trucks....the left's worst nightmare!

  3. #23
    Join Date
    Dec 2008
    Posts
    196
    Feedback Score
    0
    After looking at the pictures I would take off the Magpul B.A.D. Lever for future testing. Can you measure the buffer spring again? If it's an unknown mfg. I would put a quality spring in.

    Copied from another M4C post.

    From:
    TECHNICAL MANUAL
    ARMY NO. 9-1005-319-23&P
    AIR FORCE TO 11W3-5-5-42

    RIFLE: 11 3/4 Inches (29 85 cm)
    minimum to 13 1./2 inches (34 29 cm)
    maximum

    CARBINE: 10 1/16 inches (25.56 cm)
    minimum to 11 1/4 inches (28.58 cm)
    maximum.
    NRA Lifetime Member
    Firearms and Diesel Trucks....the left's worst nightmare!

  4. #24
    Join Date
    Jun 2012
    Posts
    16
    Feedback Score
    0
    Quote Originally Posted by Blowby View Post
    After looking at the pictures I would take off the Magpul B.A.D. Lever for future testing.
    Take off the BAD lever! My buddies rifle did the same, not locking back on last round, and that was the cause. Try that first.

  5. #25
    Join Date
    Oct 2011
    Location
    Alaska
    Posts
    3,523
    Feedback Score
    3 (100%)
    Just curious, since none of us have asked, will the rifle lock back on an empty mag when you hand cycle it?

  6. #26
    Join Date
    Jun 2012
    Posts
    32
    Feedback Score
    3 (100%)
    Quote Originally Posted by Blowby View Post
    After looking at the pictures I would take off the Magpul B.A.D. Lever for future testing. Can you measure the buffer spring again? If it's an unknown mfg. I would put a quality spring in.

    Copied from another M4C post.

    From:
    TECHNICAL MANUAL

    CARBINE: 10 1/16 inches (25.56 cm)
    minimum to 11 1/4 inches (28.58 cm)
    maximum.

    ok 2 things and this answers for others too First the spring is unknown and if i put a larger spring.. say 10-11'' in it ( i would assume) it will increase forward tension ....thus increasing my issue.....AND

    Second the bad lever was off for most of the time shooting i pretty much put it on there the last 100rnds.... but I WILL TAKE IT OFF UNTILL I GET THE problem solved...(it cant be helping)

    Also should i just buy a DD buffer AND spring?? any good companies with a good price...that i can even get my hand out lol

  7. #27
    Join Date
    Jun 2012
    Posts
    32
    Feedback Score
    3 (100%)
    Quote Originally Posted by AKDoug View Post
    Just curious, since none of us have asked, will the rifle lock back on an empty mag when you hand cycle it?
    yes it locks back no prob (empty)mag in and hand cycle

  8. #28
    Join Date
    Jun 2012
    Posts
    32
    Feedback Score
    3 (100%)
    Quote Originally Posted by 7 RING View Post
    Roger that. Photos are up now.

    What is the length of the buffer and the free length of the buffer spring?
    3 1/4'' and 9''

  9. #29
    Join Date
    Jun 2012
    Posts
    32
    Feedback Score
    3 (100%)
    ??????

    so the pics of my front sight/gas block you can see the blow back rusty leaking crap around it ....

    as i do not lube my gas block ..lol... im pretty sure this has a lot to do with my problem...

    im just not sure what i can do or where to start with fixing a leaxking gas block...

    the gun shop i bought the upper from said they have to test fire the gun..w/e and they cant look at it till next thursday or friday...no real big deal but i dont think broken stuff..or half broken stuff

  10. #30
    Join Date
    Nov 2010
    Location
    MI
    Posts
    3,055
    Feedback Score
    21 (100%)
    Pictures are worth 1000 words.

    Now we can get somewhere.

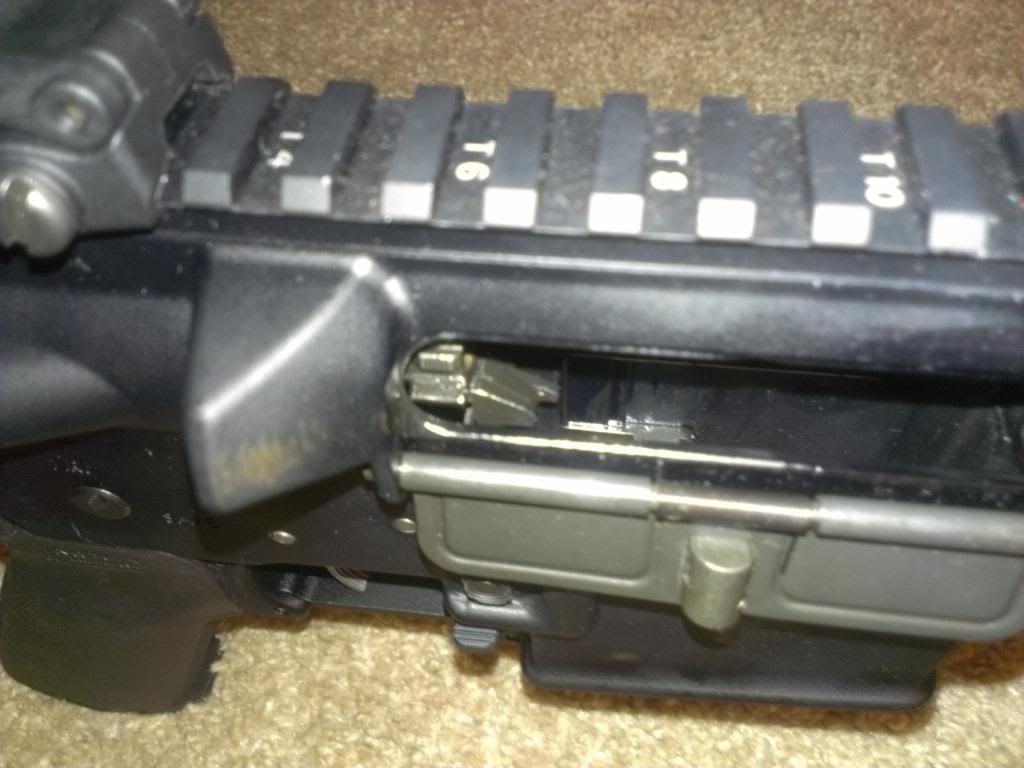

    PIC1
    I'll bet the problem is with the spring.
    It's too short and looks like it has too many coils.

    Quote Originally Posted by chaarp1 View Post

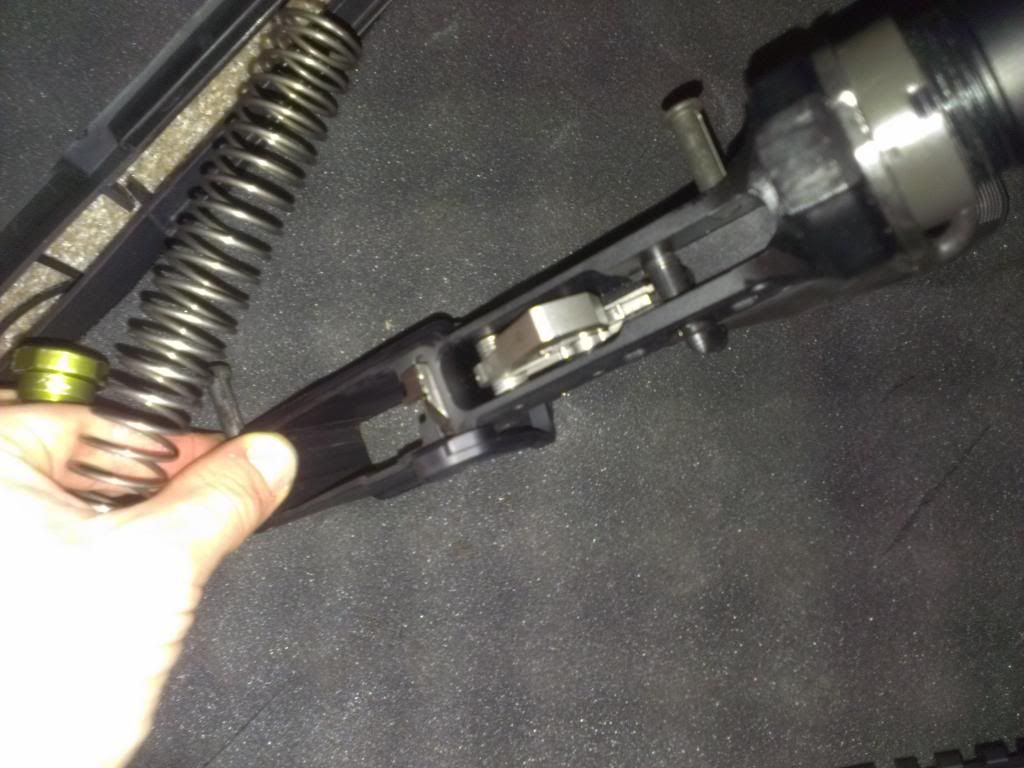

    PIC2
    This is doing it wrong.
    The bolt needs to be in the forward position with the carrier all the way back.
    Then check for .250" clearance behind the catch.

    Quote Originally Posted by chaarp1 View Post

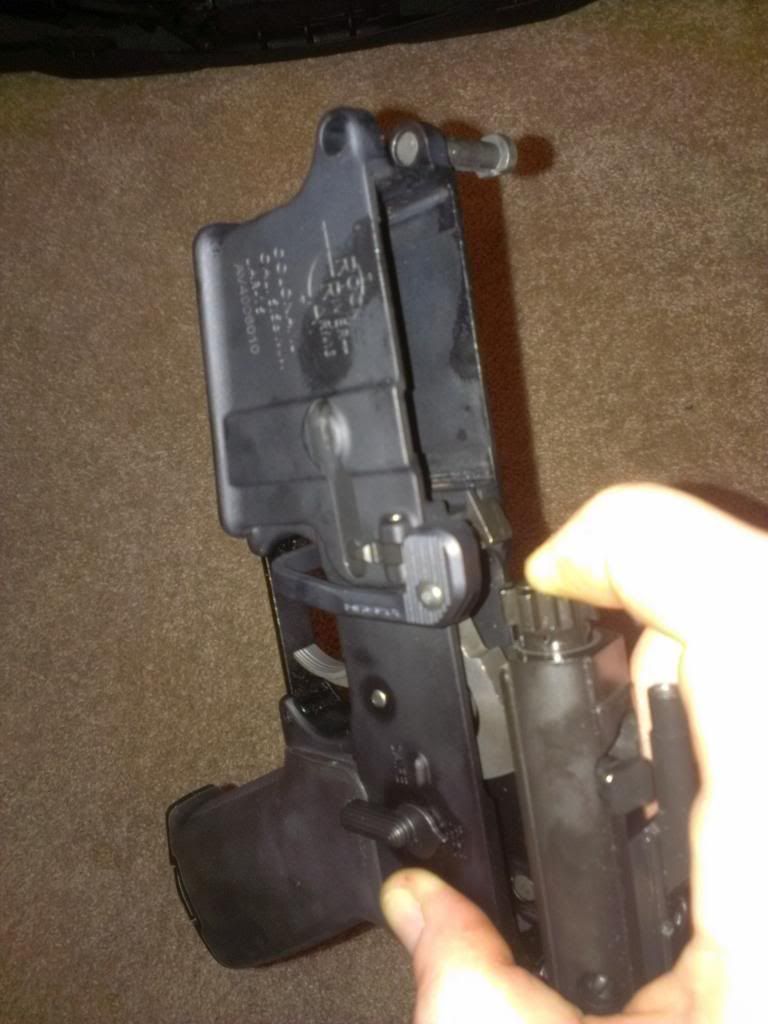

    PIC3
    This shows there is NOT nearly .250" clearance.
    The spring is probably at its stacked height, preventing full travel.
    Quote Originally Posted by chaarp1 View Post
    To verify the spring is the culprit, remove it.

    Put ONLY the buffer into the receiver extension tube.
    Reassemble the upper and pull the charging handle all the way back.

    If you get the .250" clearance, you've found the problem.

    Gently bounce the rifle straight down on the flash hider to return the carrier forward and allow removal of the upper.

    Then order two quality carbine springs from Bravo Company or G&R Tactical.
