  1. #11
    Join Date
    May 2011
    Posts
    3,095
    Feedback Score
    7 (89%)
    Quote Originally Posted by Clint View Post
    This has been covered in a good bit if detail here.
    http://m4carbine.net/showthread.php?t=102496
    That's awesome, thanks for the link
    Quote Originally Posted by C4IGrant View Post
    Colt builds War Horses, not show ponies.
    Quote Originally Posted by Iraqgunz View Post
    This is 2012. The world is going to end this December and people are still trying to debate the merits of piece of shit, cost cutting crap AR's. Really?

  2. #12
    Join Date
    Jul 2007
    Location
    New Jersey
    Posts
    7,152
    Feedback Score
    4 (100%)
    Quote Originally Posted by sinlessorrow View Post
    Yes, the AR-15 system has both a spring and a buffer system to help counter it.
    If you're concerned that perhaps it's another component which could fail, granted to some extent. But what about the the wear disbursement factor?

  3. #13
    Join Date
    Nov 2009
    Location
    Norway
    Posts
    1,476
    Feedback Score
    0
    I think you are a bit too wrapped around the design of the AR-15 buffer and action spring system, to clearly see how the other systems work.

    First, let's define what a recoil buffer is:

    A component that reduces the velocity and/or cushions the impact of the recoiling parts of a firearm.

    The AR system is just one take on a buffer system.

    Like I said previously, other systems have buffers, they are just designed differently. In the AR, the buffer system is located in the receiver extension; it houses the buffer and action spring.

    In other systems, the action sping is located in the upper itself, sometimes combined with a guide rod, and the buffer is mounted on the receiver end plate, or stock, and cushions the impact of the reciprocating bolt.

    A few examples:

    G3:

    Showing different HK buffers:


    Fixed stock and action spring/action spring rod:


    Collapsible stock, part of buffer visible above latch


    Cutaway view:


    MG 3:

    Buffer:


    Recoil Spring:


    Stock:


    Removal of stock and recoil spring:


    Removal of buffer:


    FN MAG:

    Stock, number 6 is buffer:


    Showing recoil spring and rod attached:


    Recoil spring and rod removed:


    Now, I have not handled a SCAR or ACR, but from what I can see from the pics you posted, the action spring assembly works as the buffering mechanism, and there is probably something on either the stock or on the action spring rod that cushions the impact (vertical bar on the SCAR rod, and white rubber knob on ACR rod I think).

    Again, a buffering system is just that, a system; execution can vary from weapon design to weapon design.
    Last edited by Arctic1; 01-06-13 at 10:35.
    It's not about surviving, it's about winning!

  4. #14
    Join Date
    Jul 2007
    Location
    New Jersey
    Posts
    7,152
    Feedback Score
    4 (100%)
    Great post Arctic1. As was explained to me by someone we would all know at SHOT a few years ago, the design may be somewhat unique in regard to the tube but is in no way inferior. The only time issues arise on a practical level is when full concealment is desired.
    Last edited by Safetyhit; 01-06-13 at 10:13.

  5. #15
    Join Date
    Jan 2012
    Location
    Finland
    Posts
    320
    Feedback Score
    0
    Quote Originally Posted by Arctic1 View Post
    Almost all the weapons I have used have a buffer assembly of some kind; G3, MG3, MP-5, Minimi, FN MAG, AK. It's just the design that varies from system to system.
    AK does not have a buffer. BCG stops by slamming into the end of the receiver.

    Most weapons I have worked with do not have a buffer.

  6. #16
    Join Date
    Nov 2009
    Location
    Norway
    Posts
    1,476
    Feedback Score
    0
    There is an after-market buffer available. Anyways, the action spring is a buffer system, it just doesn't have anything to cushion the impact of the reciprocating parts.

    What weapons have you worked with that don't have a buffer?
    It's not about surviving, it's about winning!

  7. #17
    Join Date
    Jan 2012
    Location
    Finland
    Posts
    320
    Feedback Score
    0
    Quote Originally Posted by Arctic1 View Post
    There is an after-market buffer available. Anyways, the action spring is a buffer system, it just doesn't have anything to cushion the impact of the reciprocating parts.

    What weapons have you worked with that don't have a buffer?
    To be honest I can't think of a single weapon in the FDF arsenal that has a buffer. Sako/Valmet, PKM etc. don't have one.

    There are aftermarket buffers for the AK, but they will cause problems. Depending on the design they may cause the bolt to short stroke and regardless of the design the have ability to break down. I broke an US made buffer only after few hundred rounds, and the best ones in few thousand (at least the ones I have shot). When they break the parts will drop into the fire control group and cause problems. They do alter the felt recoil and IMHO make the gun a bit nicer to shoot, but also IMHO they definately are not worth the hassle.

  8. #18
    Join Date
    Nov 2010
    Location
    MI
    Posts
    3,055
    Feedback Score
    21 (100%)
    A good analogy for the firearm action spring and buffer is the spring and bump stop system used on automotive suspensions.

    In the simple case of a leaf spring truck axle, there will be the leaf spring (action spring) and a bump stop (buffer).

    The bump stop is most often a rubber on steel contact point, but can be steel on steel in the case of overload springs like used on a dump truck.



    One other key defining feature is:
    the action spring is active during the full action stroke,
    while the buffer is active only during a short distance at the end of the recoil stroke.


    The AK's bump stop is generally the rear trunion, steel on steel.

    Other firearms use a very heavy spring, or an rubber/urethane bumper as the bump stop.

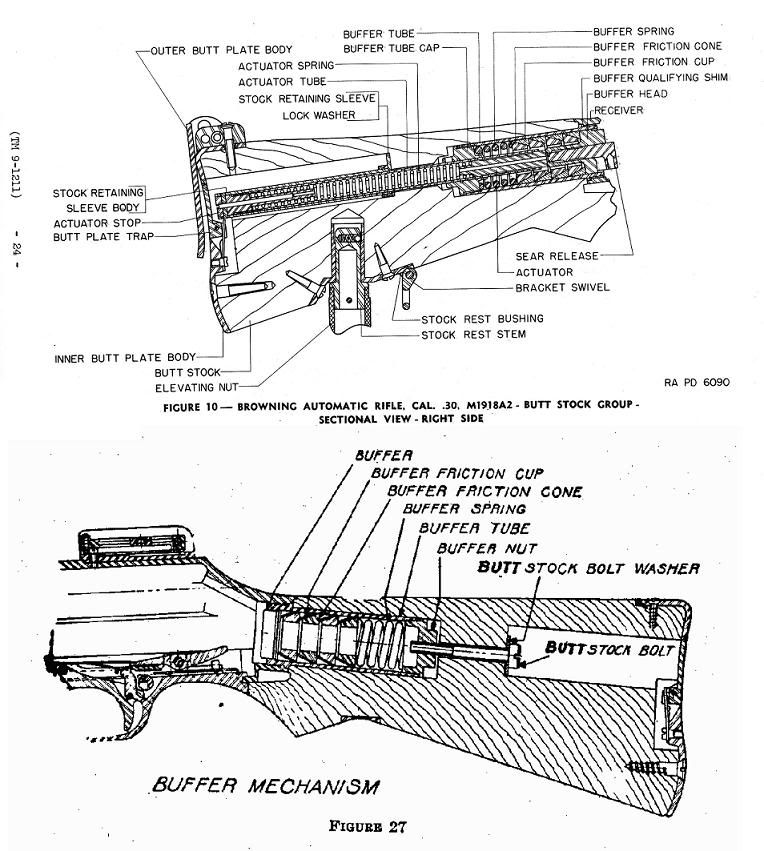

    The original M1918 BAR has a heavy "buffer spring" surrounding the "actuator spring" (action spring) .

    Last edited by Clint; 01-06-13 at 19:23.
