  1. #31
    Join Date
    Jun 2006
    Posts
    10,039
    Feedback Score
    1 (100%)
    Quote Originally Posted by Diver160651A View Post
    Then you must buy a special barrel wrench and often grind it to fit.

    Really? Please enlighten those of us who have not bought a special barrel nut (wrench) and had to grind it to fit as to what you are talking about.



    ETA- "wrench" for easier context.
    Last edited by Stickman; 01-24-13 at 21:26.
    Stick


    Board policy mandates I state that I shoot for BCM. I have also done work for 200 or so manufacturers within the firearm community. I am prior service, a full time LEO, firearm instructor, armorer, TL, martial arts instructor, and all around good guy.

    I also shoot and write for various publications. Let me know if you know cool secrets or have toys worthy of an article...


    Flickr Tumblr Facebook Instagram RECOILMAGAZINE OFF GRID RECOIL WEB

  2. #32
    Join Date
    Oct 2012
    Posts
    17
    Feedback Score
    0

    Tube rails NSR vs. Alpha

    Quote Originally Posted by Stickman View Post
    Really? Please enlighten those of us who have not bought a special barrel nut and had to grind it to fit as to what you are talking about.
    Wow,

    Maybe I am reading your post incorrectly, but it seem unduly sarcastic. I never said you had to buy a special barrel nut, nor would I ever suggest to grind a barrel nut.

    1. I know if you search a bit you will find people who have hard a hard time as I did with getting the NSR to line up within proper torque regardless of making sure debris, excess grease etc. was not contributing to the problem. The 1st attached picture is of the Noveske 7.5 with Viltor upper, that I had torque issues with. Of course it is fixed now so the image is pointless.

    2. Same goes for having to grind a barrel nut tool NOT THE BARREL NUT. I have attached a photo, but that is not a big deal.

    3. BARREL NUT ---- I had to USE A LATHE on the barrel nut, on another build to take a few thousands of material from the inside of the barrel nut to clear the barrel shoulder (the part just before the barrel extension).

    Attachment 15035

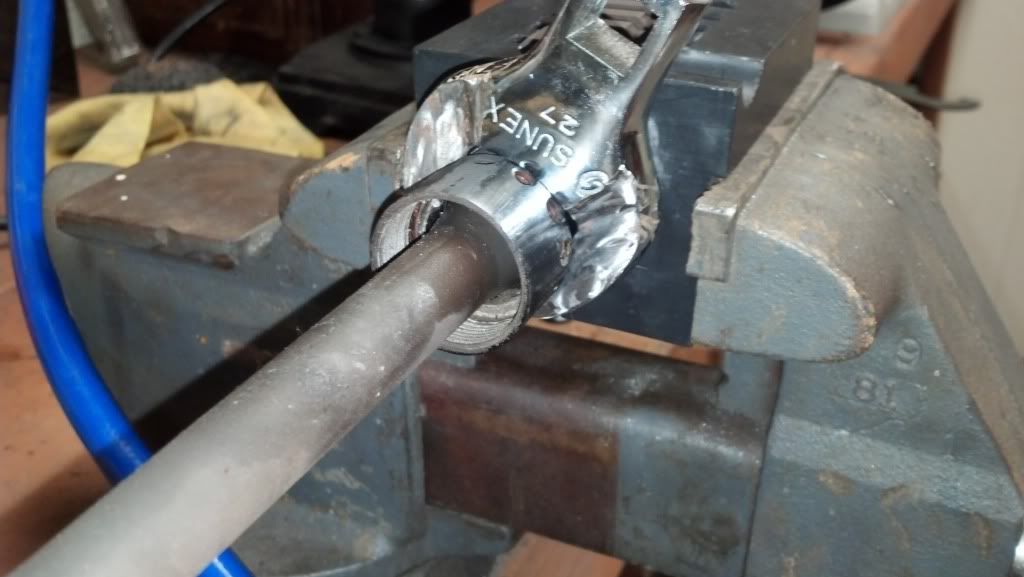

    The barrel nut tool ground to fit.

    Attachment 15036

    I hope this was clear. My only point was to say that in some cases, the NSR takes a bit of work.


    Jt

    Sent from my iPad using Tapatalk HD
    Last edited by Diver160651A; 01-24-13 at 21:11.

  3. #33
    Join Date
    Jun 2006
    Posts
    10,039
    Feedback Score
    1 (100%)
    Quote Originally Posted by Diver160651A View Post
    Wow,

    Maybe I am reading your post incorrectly, but it seem unduly sarcastic. I never said you had to buy a special barrel nut, nor would I ever suggest to grind a barrel nut.
    I quoted you with your wrench comment, but I suppose my context could have been more clear to the other people reading this. My question is regarding your comment stating you had to "buy a special barrel wrench and often grind it to fit".

    That is what I'm looking for clarification on. How many barrel nut wrenches did you have to buy, and how many did you have to grind to fit?


    You show as having uploaded something, but nothing is viewable using Mozilla Firefox 18.0.1. That seems to be a common board problem when people try to direct upload here instead of using an host for the images.
    Last edited by Stickman; 01-24-13 at 21:37.
    Stick


    Board policy mandates I state that I shoot for BCM. I have also done work for 200 or so manufacturers within the firearm community. I am prior service, a full time LEO, firearm instructor, armorer, TL, martial arts instructor, and all around good guy.

    I also shoot and write for various publications. Let me know if you know cool secrets or have toys worthy of an article...


    Flickr Tumblr Facebook Instagram RECOILMAGAZINE OFF GRID RECOIL WEB

  4. #34
    Join Date
    Sep 2010
    Location
    Northern UT
    Posts
    4,023
    Feedback Score
    66 (100%)
    I could be wrong but I was under the impression that you had to use a nsr specific MUR or else you could run into problems. Someone please correct me if I am wrong.
    I paint spaceship parts.

    Quote Originally Posted by Failure2Stop View Post
    Stippled Glocks are like used underwear; previous owner makes all the difference in value.

  5. #35
    Join Date
    Jun 2006
    Location
    CONUS
    Posts
    4,020
    Feedback Score
    6 (100%)
    Quote Originally Posted by VIP3R 237 View Post
    I could be wrong but I was under the impression that you had to use a nsr specific MUR or else you could run into problems. Someone please correct me if I am wrong.
    I didn't, since i didn't have a MUR with the pin hole. you don't have to use one - but it'd be nice to have.

  6. #36
    Join Date
    Dec 2010
    Location
    Florida
    Posts
    30
    Feedback Score
    0
    Quote Originally Posted by VIP3R 237 View Post
    I could be wrong but I was under the impression that you had to use a nsr specific MUR or else you could run into problems. Someone please correct me if I am wrong.
    The Noveske MUR has the alignment pin (anti-rotation pin) hole pre-drilled for those that are inclined to use it. Mine works perfectly fine without it, and I don't foresee myself working the barrel nut loose anytime soon by hand.

    LOVE my 13.5 NSR

  7. #37
    Join Date
    Sep 2010
    Location
    Northern UT
    Posts
    4,023
    Feedback Score
    66 (100%)
    Quote Originally Posted by militarymoron View Post
    I didn't, since i didn't have a MUR with the pin hole. you don't have to use one - but it'd be nice to have.
    Quote Originally Posted by Echo7847 View Post
    The Noveske MUR has the alignment pin (anti-rotation pin) hole pre-drilled for those that are inclined to use it. Mine works perfectly fine without it, and I don't foresee myself working the barrel nut loose anytime soon by hand.

    LOVE my 13.5 NSR
    Thanks Gents for the clarification.
    I paint spaceship parts.

    Quote Originally Posted by Failure2Stop View Post
    Stippled Glocks are like used underwear; previous owner makes all the difference in value.

  8. #38
    Join Date
    Oct 2012
    Posts
    17
    Feedback Score
    0

    Tube rails NSR vs. Alpha

    Quote Originally Posted by Stickman View Post
    That is what I'm looking for clarification on. How many barrel nut wrenches did you have to buy, and how many did you have to grind to fit?
    .
    The 1-1/16" crows foot needed is not super common but easily found. Mine (as well as some others) were too fat to fit the NSR barrel nut. So to your point, I bought one and ground it down. I didn't factor it into the price of the rail, nor think it is a deal breaker. Image link below




    Jt

    Sent from my iPad using Tapatalk HD

  9. #39
    Join Date
    Mar 2011
    Location
    Southeast Louisiana
    Posts
    17
    Feedback Score
    5 (100%)
    Great info gents. I'm currently shopping for the perverbial henstooth NSR for a build. Looks like it may take some time to complete.

  10. #40
    Join Date
    Jan 2009
    Location
    Mississippi
    Posts
    3,996
    Feedback Score
    50 (100%)
    The 1 1/16 or Sunex 27 mm works fine with a small bit of trimming. Got it off Amazon for just a few bucks. Took 20 minutes to get the correct width to fit the NSR barrel nut. No big deal whatsoever.



    As far as using an upper that doesn't have the hole machined for the anti-rotation pin I haven't heard any problems. If you are a little paranoid about this you can make a makeshift anti-rotation tab from some optic mounts. For a little insurance I slid my T-1 LaRue LT660 mount slightly forward to where the very front of it overlaps the NSR.

    -Jax

    ETA: The worry about the NSR 'spinning' is a little overblown. I ran a DD Omega X 12" for years. It's a great rail but has no tabs and it has a much weaker mounting setup compared to the Noveske. Never had a problem with that one either.
    Last edited by jaxman7; 01-25-13 at 09:09.


    "Despite what your mamma told you, violence does solve problems."
    -Ryan Job



    Quote Originally Posted by Army Chief View Post
    "Elite" designations come from the things that you DO in life, and not from the things that you buy along the way. AC
