Thread: NSR/MUR Drilling Anti-rotation DIY

  1. #21
    Join Date
    May 2010
    Posts
    186
    Feedback Score
    3 (100%)
    Install barrel nut, apply some sort of marking paint on the NSR and slide NSR over barrel nut essentially marking your hole on the receiver. Just a thought, good luck...

  2. #22
    Join Date
    Oct 2011
    Location
    IN
    Posts
    666
    Feedback Score
    32 (97%)
    Has anyone tried drilling the hole without a drill press? How deep does the hole in the upper have to be?

  3. #23
    Join Date
    Jan 2009
    Location
    Mississippi
    Posts
    3,996
    Feedback Score
    50 (100%)
    Quote Originally Posted by black22rifle View Post
    Has anyone tried drilling the hole without a drill press? How deep does the hole in the upper have to be?
    Not sure of the exact depth. I'll post some pics when I get home this afternoon.

    -Jax

    ETA: I would assume its the same depth as the NSR side but I am not 100% sure.
    Last edited by jaxman7; 08-14-13 at 12:51.


    "Despite what your mamma told you, violence does solve problems."
    -Ryan Job



    Quote Originally Posted by Army Chief View Post
    "Elite" designations come from the things that you DO in life, and not from the things that you buy along the way. AC

  4. #24
    Join Date
    Sep 2010
    Posts
    762
    Feedback Score
    0
    Id be too scared to drill into my upper. Im surprised they didn't engineer it with a little external tab (sorta like the one on the alpha rail.)
    Quote Originally Posted by skd_tactical View Post
    It's a shot in the dark ... I have a better chance of guessing when my wife will be mad for no reason.
    "If your not using an aimpoint, you need to take a ****ing piss test." -LAV

  5. #25
    Join Date
    Jan 2009
    Location
    Mississippi
    Posts
    3,996
    Feedback Score
    50 (100%)
    Quote Originally Posted by NeoNeanderthal View Post
    Id be too scared to drill into my upper. Im surprised they didn't engineer it with a little external tab (sorta like the one on the alpha rail.)
    Randall @ AR15barrels drilled mine and did a very good job.

    -Jax


    "Despite what your mamma told you, violence does solve problems."
    -Ryan Job



    Quote Originally Posted by Army Chief View Post
    "Elite" designations come from the things that you DO in life, and not from the things that you buy along the way. AC

  6. #26
    Join Date
    Jan 2009
    Location
    Mississippi
    Posts
    3,996
    Feedback Score
    50 (100%)

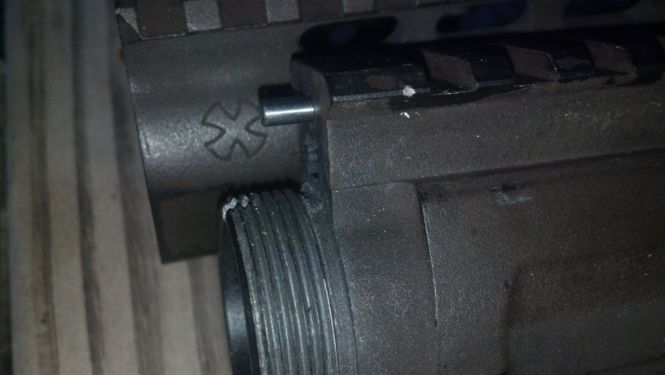

    The pin is slightly more than halfway into the MUR. As mentioned before this is a Vltor MUR so it was drilled post factory.
    The pin rests in the NSR at the halfway point.



    Fully seated in NSR:



    Fully seated in MUR:





    Apologies for the shoddy cell pics.

    Not sure if this helps any one but I said I'd post up photos. So there ya go.

    -Jax
    Last edited by jaxman7; 08-14-13 at 21:31.


    "Despite what your mamma told you, violence does solve problems."
    -Ryan Job



    Quote Originally Posted by Army Chief View Post
    "Elite" designations come from the things that you DO in life, and not from the things that you buy along the way. AC

  7. #27
    Join Date
    Feb 2009
    Location
    MA
    Posts
    1,612
    Feedback Score
    10 (100%)
    Quote Originally Posted by Onyx Z View Post
    What upper is that with the big round hole?

  8. #28
    Join Date
    Oct 2012
    Location
    TEXAS
    Posts
    1,507
    Feedback Score
    13 (100%)
    Quote Originally Posted by EzGoingKev View Post
    What upper is that with the big round hole?
    It look to be a VLTOR MUR, and if I had to guess, it was modified for a piston setup.
