Thread: Anyone ever had trouble like this?

  1. #1
    Join Date
    Jan 2014
    Posts
    183
    Feedback Score
    12 (100%)

    Anyone ever had trouble like this?

    I have a BCM upper and I've had problems with my bolt locking open after firing my last round. I think it has something to do with the pmag followers getting nicked somehow.

    This is how several of my followers have become recently. Anyone know what could be causing this?

  2. #2
    Join Date
    Dec 2011
    Location
    Hamburg PA
    Posts
    3,506
    Feedback Score
    1 (100%)
    That nick shouldn't be causing issues with the mags failing to lock the bolt back.
    Have you tried other mags in the rifle to see if they hold the rifle open? Also, what ammo are you running? Lower? Buffer? More information could be helpful.

    ON a related note, I have had Tula fail to lock the bolt back on several of my rifles, BCMs and even an over gassed Bushy because it wasn't cycling hard enough. Could be the ammo. Could be that the rifle is over sprung, could be several other things as well.
    "I don't collect guns anymore, I stockpile weapons for ****ing war." Chuck P.

    "Some days you eat the bacon, and other days the bacon eats you." SeriousStudent

    "Don't complain when after killing scores of women and children in a mall, a group of well armed men who train to shoot people like you in the face show up to say hello." WillBrink

  3. #3
    Join Date
    Jan 2014
    Posts
    183
    Feedback Score
    12 (100%)
    Well it locks back with other mags, I cannot remember what ammo it was. Department issued, it's a spikes tactical lower, and a standard weight buffer

  4. #4
    Join Date
    Jan 2008
    Location
    AZ-Waging jihad against crappy AR's.
    Posts
    24,902
    Feedback Score
    104 (100%)
    A little more info. Upper type, buffer and spring, etc... would all be good.

    Quote Originally Posted by stx.dead.I View Post
    I have a BCM upper and I've had problems with my bolt locking open after firing my last round. I think it has something to do with the pmag followers getting nicked somehow.

    This is how several of my followers have become recently. Anyone know what could be causing this?



    Owner/Instructor at Semper Paratus Arms

    Facebook: https://www.facebook.com/SemperParatusArms/

    Semper Paratus Arms AR15 Armorer Course http://www.semperparatusarms.com/cou...-registration/

    M4C Misc. Training and Course Announcements- http://www.m4carbine.net/forumdisplay.php?f=141

    Master Armorer/R&D at SIONICS Weapon Systems- http://sionicsweaponsystems.com

  5. #5
    Join Date
    Aug 2014
    Location
    Surrounded by pines in Wi.
    Posts
    155
    Feedback Score
    0
    I have run into a few Pmags that would not hold open after the last round was fired.
    What I found was the top of the rear spine just below the "U" or "V" channel had some plastic flashing that when the magazine was in place would make contact with the bolt hold open and not allow the spring pressure to push up and lock back.
    Took a razor knife and trimmed the flashing so it did not make contact with the bolt hold open and all is well.
    Worth a look, just separate your halves and put a magazine in and toggle the hold open and see if there is contact.

    Clarence

  6. #6
    Join Date
    Apr 2010
    Location
    McKinney, TX
    Posts
    3,253
    Feedback Score
    22 (100%)
    Quote Originally Posted by AM-15 View Post
    I have run into a few Pmags that would not hold open after the last round was fired.
    What I found was the top of the rear spine just below the "U" or "V" channel had some plastic flashing that when the magazine was in place would make contact with the bolt hold open and not allow the spring pressure to push up and lock back.
    Took a razor knife and trimmed the flashing so it did not make contact with the bolt hold open and all is well.
    Worth a look, just separate your halves and put a magazine in and toggle the hold open and see if there is contact.

    Clarence
    I've had this happen with a few Pmags as well. I took the mag apart and used a small square file and reshaped the opening from a rounded off "U" shape to a defined square shape and the problem was solved every time.
    Steve

  7. #7
    Join Date
    Jan 2014
    Posts
    183
    Feedback Score
    12 (100%)
    Quote Originally Posted by SteveL View Post
    I've had this happen with a few Pmags as well. I took the mag apart and used a small square file and reshaped the opening from a rounded off "U" shape to a defined square shape and the problem was solved every time.
    Can you explain in a little more detail pls? Or even just a picture

  8. #8
    Join Date
    Oct 2009
    Posts
    1,460
    Feedback Score
    20 (100%)
    Quote Originally Posted by stx.dead.I View Post
    Can you explain in a little more detail pls? Or even just a picture
    On gen 1 and 2 pmags the U shape on the top rear of the magazine body has a little flashing that can rub against the bolt catch. It will contact the wider portion, not the little tip that rests on the follower. This prevents the follower from reliably pressing the bolt catch upward after the last shot.

    Refer to the first picture in this post by Pandamonium: https://www.m4carbine.net/showthread...23#post1120823
    Will - Owner of Arisaka LLC - http://www.arisakadefense.com

  9. #9
    Join Date
    Apr 2010
    Location
    McKinney, TX
    Posts
    3,253
    Feedback Score
    22 (100%)
    Quote Originally Posted by stx.dead.I View Post
    Can you explain in a little more detail pls? Or even just a picture

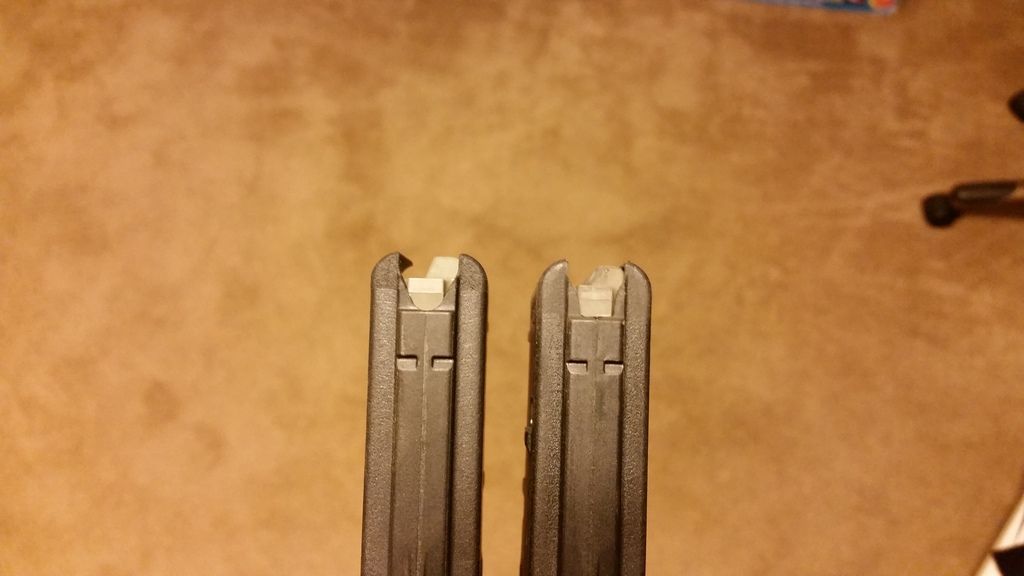

    Original on the left, modified on the right.

    Steve

  10. #10
    Join Date
    Mar 2011
    Location
    Exiled to the American Southwest
    Posts
    31
    Feedback Score
    4 (100%)
    Never had that happen. Is it a definite mag issue, or is it something more?
