    Phase V EBRv2

    Has anyone here had any problems with the Phase V tactical Extended Bolt Release (EBR) V2?

    I have the older version on my work rifle, which is a 16 inch LMT. On my rifle, the EBRv2 has been flawless.

    A co-worker has tried 3 different versions on his LMT MRP 18 inch rifle. He has had nothing but problems. He has had problems with the bolt failing to lock back after the last round being fired. This problem happens about half the time. He has been using Magpul and USGI magazines. The problem can't be traced to any particular magazines as they all seem to have the same problem about half of the time.

    I put the newest version, which has weight relief cuts on it, of the EBRv2 on a co-worker's Colt 6940 today. I weighed the newer EBRv2 on my kitchen scale and got 3/4 of an ounce. The standard colt bolt release weighs 3/8 of an ounce. I had 2 failures to lock back on 2 out of 10 magazines. The magazines were brand new Magpuls.

    Anyone know what the new Mapul BAD weighs?
    Last edited by Dapimpspimp; 11-14-09 at 16:57. Reason: edited for grammer...too much samuel adams prior to the inital post

  2. #2
    Join Date
    Jun 2006
    Location
    SE FL
    Posts
    14,148
    Feedback Score
    5 (100%)
    7.3 grams for the current production version.

  3. #3
    Join Date
    May 2008
    Location
    Colorado
    Posts
    13,172
    Feedback Score
    0
    Could it be a weak bolt catch spring, or is it binding either around the pivot pin or in the slot for the bolt catch?
    I just did two lines of powdered wig powder, cranked up some Lee Greenwood, and recited the BoR. - Outlander Systems

    I'm a professional WAGer - WillBrink /// "Comey is a smarmy, self righteous mix of J. Edgar Hoover and a gay Lurch from the "Adams Family"." -Averageman

  4. #4
    Join Date
    Nov 2007
    Location
    Utah
    Posts
    8,685
    Feedback Score
    4 (100%)
    Quote Originally Posted by rob_s View Post
    7.3 grams for the current production version.
    WHich for the metric-impaired is a hair over 1/4 oz
    • formerly known as "eguns-com"
    • M4Carbine required notice/disclaimer: I run eguns.com
    •eguns.com has not been actively promoted in a long time though I still do Dillon special
    orders, etc. and I have random left over inventory.
    •"eguns.com" domain name for sale (not the webstore). Serious enquiries only.

  5. #5
    Join Date
    May 2009
    Posts
    35
    Feedback Score
    0
    I'm pretty sure I'm the co-worker he's talking about. I'm thinking too strong a bolt catch spring?? Or maybe I've got a burr in there somewhere or just a slightly out of spec spring, plunger, lower, or bent pin? Phase V has had about the best CS I've ever run into trying to help me through the problem. I really like the part; one piece, perfect positioning, etc etc, I just need it to work. We've been racking our brains on this and we think maybe its a harmonics issue. There is some sort of very small vibration that is happening during the recoil of that last round not letting it engage the bolt. I have a few more ideas before I quite, I really want to make the part work. Anybody having similar issues? I haven't used the BAD but from a parts and pieces point of view, I like the idea of the EBRv2 being one part instead of a bolt on to the original bolt catch. FYI, the gun is an LMT MRP 18"-Norcal911

  6. #6
    Join Date
    Feb 2008
    Posts
    2,949
    Feedback Score
    31 (97%)
    mine doesn't always lock back and I love the idea of it being a 1piece vs the two piece with the bad, although I do have a bad sitting in my safeto go on my 2nd once it's completed.
    I must study politics and war, that our sons may have liberty to study mathematics and philosophy. - John Adams

    The AK guys are all about the reach around. - Garand Thumb.

  7. #7
    Join Date
    Nov 2007
    Posts
    11,063
    Feedback Score
    41 (98%)
    Seems these lever's (this brand and magpul) are causing quite a few people to have problems with the bolt not locking back.


    This is probably the 5th thread on this with multiple people reporting the same on the various boards.


    I do have a BAD but have not been able to shoot with it yet. Just working it in my house I'm a bit leary about if its something that is going to work for me. Its certainly a good idea but how well it matches up to reality will be another story.


    A bolt not locking back kind of negates any benefit from the purpose of the lever, and will make operation slower than nothing at all.

  8. #8
    Join Date
    Jun 2006
    Location
    SE FL
    Posts
    14,148
    Feedback Score
    5 (100%)
    Quote Originally Posted by Belmont31R View Post
    A bolt not locking back kind of negates any benefit from the purpose of the lever
    while I agree with the sentiment that having a bolt not lock back is unacceptable, the above is not a true statement.

  9. #9
    Join Date
    Jan 2009
    Posts
    132
    Feedback Score
    0
    I had issues with the first EBRv2 I recieved not holding the bolt back after the last round. I contacted Ken at Phase 5 and he was very easy to work with. He sent me out one of the first lightened versions which to date has been 100%. If you are unhappy with the performance, contact him, he is very concerned about selling a quality product and wants happy customers, great guy to deal with.

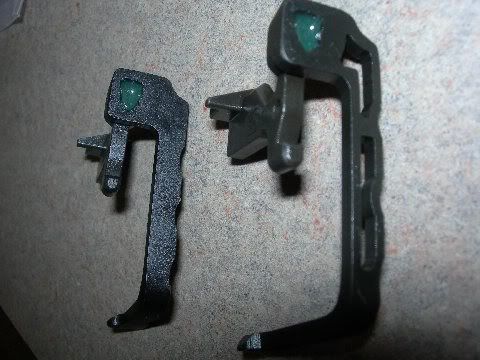

    Newest version in the foreground.

  10. #10
    Join Date
    Jan 2009
    Posts
    132
    Feedback Score
    0
    Just to be fair when comparing weights between the Phase 5 lever and the BAD, you'll need to include the weight of the bolt catch with the BAD since it is one piece with the EBRv2. Using the weights in this thread that puts the BAD at 5/8 oz. and the EBRv2 at 3/4 oz. 1/8 oz. is alot closer in weight than the numbers posted seperatly would lead folks to believe.
