Thread: M4 feed ramps *HELP*(pics included)

  1. #1
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)

    M4 feed ramps *HELP*(pics included)

    My M4 feed ramps are apparently not machined right.
    9/10 rounds are getting pushed into the casing, and upon further inspection, i *think* thats what's happening.

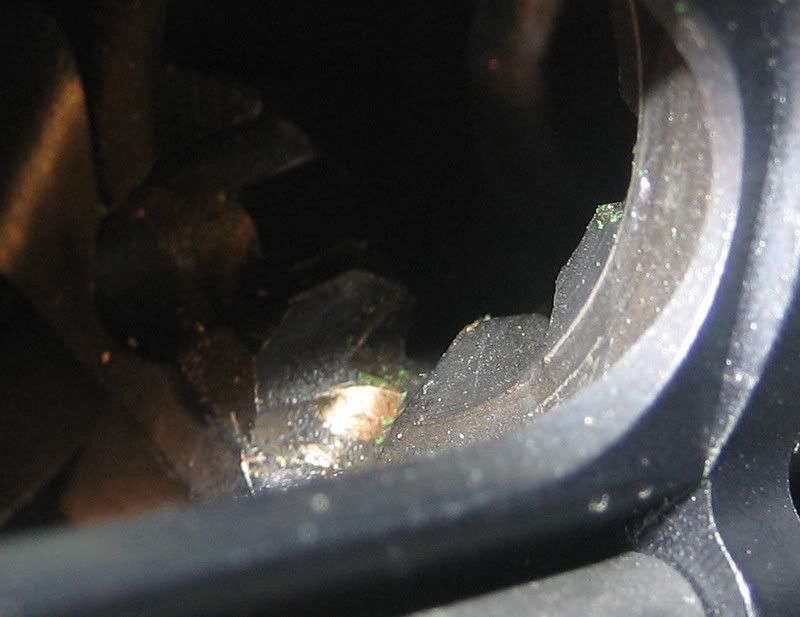

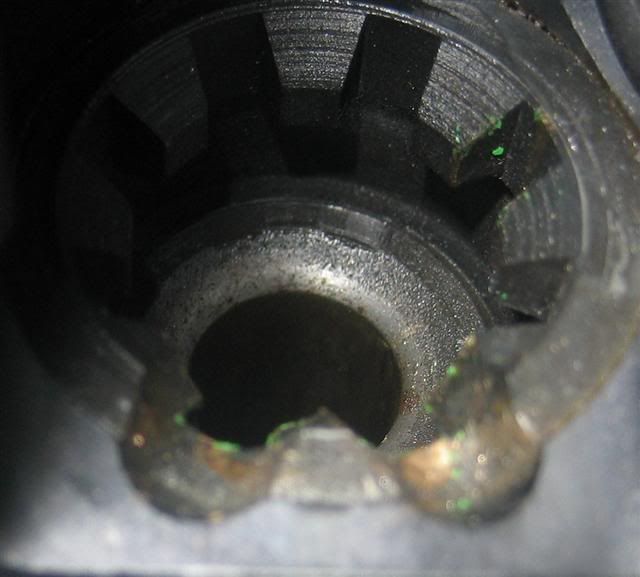

    Sorry for the bad pics...

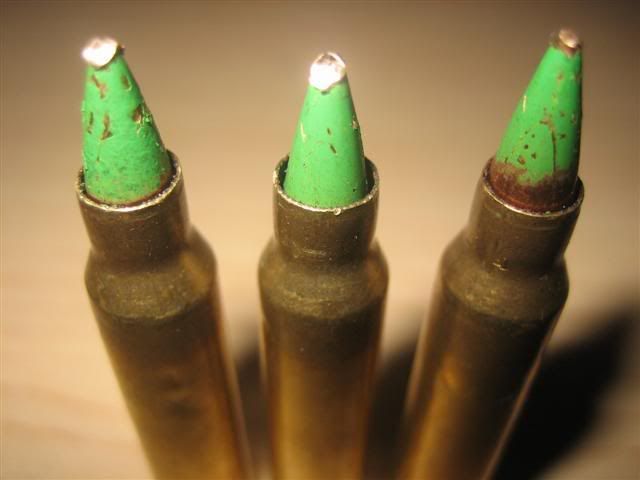

    this is what the rounds look like after trying to feed into the chamber:




    I haven't been able to find anyone here in Vegas who seems as knowledgeable as all of the great people on this site, any suggestions?
    How much would it cost to get something like this fixed?
    I got the upper from a friend, and just want to get it fixed.
    pretty much ruined my day at the range
    E=mc^2+/-3db

  2. #2
    Join Date
    Jun 2006
    Location
    NoVA
    Posts
    10,780
    Feedback Score
    17 (100%)
    What make of barrel and upper receiver and bolt carrier group?

    Are you using know good mags?

    What stock, buffer and buffer spring are you using?
    Chief Armorer for Elite Shooting Sports in Manassas VA
    Chief Armorer for Corp Arms (FFL 07-08/SOT 02)

  3. #3
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    Quote Originally Posted by gotm4 View Post
    What make of barrel and upper receiver and bolt carrier group?

    Are you using know good mags?

    What stock, buffer and buffer spring are you using?
    gotm4 -
    thanks for asking...

    Bushy upper with heavy barrel, bushy BCG marked "CM"

    brand new pmags

    standard vltor modstock with the spring and buffer it came with...

    BTW, this happened *without* ever actually firing a round down range.
    it started the first time a tried to load a round...
    E=mc^2+/-3db

  4. #4
    Join Date
    Jun 2006
    Location
    NoVA
    Posts
    10,780
    Feedback Score
    17 (100%)
    Interesting. If you can't find anyone local, I'll look at and test the upper for free on a known good lower of mine.

    I would suggest a very good cleaning, the use of a H buffer and to check your buffer spring length (to make sure it's within spec).
    Chief Armorer for Elite Shooting Sports in Manassas VA
    Chief Armorer for Corp Arms (FFL 07-08/SOT 02)

  5. #5
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    Quote Originally Posted by gotm4 View Post
    Interesting. If you can't find anyone local, I'll look at and test the upper for free on a known good lower of mine.

    I would suggest a very good cleaning, the use of a H buffer and to check your buffer spring length (to make sure it's within spec).
    thanks...PM inbound...
    E=mc^2+/-3db

  6. #6
    Join Date
    Jan 2007
    Posts
    254
    Feedback Score
    3 (100%)

    trouble

    We just had a problem similar to this, we were trying to run a rifle class in our indoor range and we used Frangible Ammo (Sorry I do not know the maker). After NUMERous malfunctions, where rounds would not feed and it seemed like they were crashing into the receiver and not feeding. By the way this did not happen with Federal XM193 in the same gns on the same day in our single lane rifle trap. When we compared the case length of the crappy non-feeding frangible ammo to the XM193 I noticed the XM193 cases were longer. I do not know how much longer, but they were longer at least an 1/8".

    TRY this. Compare your above ammo to a known QUALITY not reloaded ammo.

    If not you did not waste any time or $.

    Take Robb up on his offer.

    I hope I added something.
    Colt AR-15/M-16 Armorer, GLock Armorer, HK USP Armorer
    Firearms Instructor

  7. #7
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    ammo is M855 and when checked against other rounds, it's the same length.
    all the ammo from the same box works flawlessly in my 16" upper.

    Thanks!

    *EDIT* i'll be sending to Robb next week!
    E=mc^2+/-3db

  8. #8
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    Quote Originally Posted by Dano5326 View Post
    WTF kind of fubar BS dremel tool retard fest did you get there? Clearly a rifle extension was mod'd as well as the upper receiver.
    Well...that's not very helpful...
    E=mc^2+/-3db

  9. #9
    Join Date
    Jan 2007
    Posts
    356
    Feedback Score
    0
    Quote Originally Posted by pittbull View Post
    Well...that's not very helpful...
    Yes it is. Dano just accurately described everything that is wrong with your rifle. Even if you ignore the feedramps, look at the huge machining marks in the barrel extension.

    If I were in your position I'd call Bushmaster and ask them to step in.

  10. #10
    Join Date
    Aug 2006
    Location
    A-stan or MI or _________
    Posts
    3,652
    Feedback Score
    1 (100%)
    Call butchmaster and see if they will replace it- Even if they replace it, you will always have this taste in your mouth, so you may just want to switch brands- Even a CMT/Stag upper doesn't look like Helen Keller got her hands on a dremel tool.
    Praise be to the LORD my Rock, who trains my hands for war, my fingers for battle. Psalm 144:1

    Owner of MI-TAC, LLC .

    @MichiganTactical
