  1. #31
    Join Date
    Oct 2007
    Posts
    6,611
    Feedback Score
    11 (100%)
    Quote Originally Posted by pittbull View Post
    Thanks to everyone...
    This is just another chapter in the "Pittbull's Life Story" book.
    I got screwed again, i'm just glad i found people who could help, and would be willing to!

    I guess i still haven't learned the whole "If it looks too good to be true..." thing.

    I could tell said buddy to make the situation better, to reimburse me, etc., etc., but the problem is, now i know that something is wrong with the upper, i wouldn't feel right about the possibility of it going to someone else's hands in it's current condition.
    Man, I know how you feel, but look at it this way. If you feel your buddy is bent on screwing someone by offloading this crap on them, then he is GOING to do it.

    Now. We have come to the conclusion: SOMEONE is GOING to get ripped off.

    Period.

    Let's use this example. COMPLETELY hypothetical.

    You know that there is a thief stealing stereos out of cars in your neighborhood and he only steals 1 per night because he is worried about "alarming the neighborhood" or whatnot. So...do you buy an alarm for your car so YOU won't be the one a night, or do you put a sign on your car that says "Mine is unlocked and has a GREAT Rockford Fosgate sound system!" so as to prevent another of your neighbors from being robbed?

    Ask your friend for a refund and tell him that he really needs to stop pushing his problems on other people because someone may not be as cool headed about their misfortune as yourself.

    ETA: A victim mentality is more of a disadvantage than any other deficiency.

  2. #32
    Join Date
    Aug 2006
    Location
    USA (Washington DC/Northern Virginia)
    Posts
    715
    Feedback Score
    0
    Quote Originally Posted by pittbull View Post
    If i get the upper back from gotm4, and he is able to fix it...i just might keep it
    Your upper is in goods hands, gotm4 is The Man. If he can't fix it, he'll be able to advise you on what to do with it.

    Joe Mamma
    "Reliability above all else"
    NRA Certified Pistol and Rifle Instructor, Life Member
    Glock Certified Armorer
    Beretta & Sig Sauer Certified Pistol Armorer
    Colt Certified 1911 & AR-15/M16/M4 Law Enforcement Armorer

  3. #33
    Join Date
    Sep 2007
    Location
    PA
    Posts
    152
    Feedback Score
    1 (100%)
    Quote Originally Posted by jackinfl View Post
    Guys,
    Can someone pull the above pics and put them next to similar pics of a proper feed ramp view?

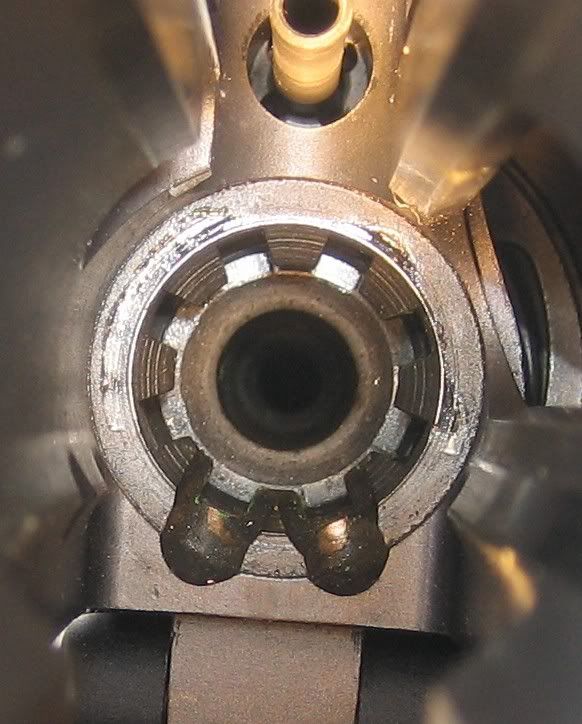

    here is a pic of a Colt M4A1 barrel on a CMT M4 cut flattop upper... as you can see the transition from the upper to the feedramps in the extension is smooth and lines up perfectly...


  4. #34
    Join Date
    Jun 2006
    Location
    Virginia
    Posts
    1,184
    Feedback Score
    2 (100%)
    Here are some pics from a TOS thread awhile back that is perfect for this thread...

    First Pitbulls pic compared with my three pics below...







    I hate to tell you Pittbull,, but I think your UPPER RECEIVER is RUINED, as well as the BARREL EXTENSION... That is some serious GOUGE work with a Dremel right there... From the pics, your receiver will never line up right no mater what extension you put on as there will always be a ledge to catch the feeding round... Even if it did work, I would NEVER trust that AR for self-defense use...


    From this pic you can see where the TIPS of the bullets are impacting that swimming pool dremel cut barrel extension... This is one of the worst M4 ramp hacks I have seen ever....

    I'm saving your pics under m4cuts_gonebad.jpg

    Rmpl
    "Our destruction... will be from another quarter. From the inattention of the people to the concerns of their government, from their carelessness and negligence..."
    ...Daniel Webster, June 1, 1837

  5. #35
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    Quote Originally Posted by Rmplstlskn View Post

    I'm saving your pics under m4cuts_gonebad.jpg

    Rmpl
    LMAO!!
    thanks, and i *HOPE* gotm4 can fix this....

    BTW - now i see what it *should* look like, and i really hope my upper isn't ruined
    E=mc^2+/-3db

  6. #36
    Join Date
    Jun 2006
    Location
    Virginia
    Posts
    1,184
    Feedback Score
    2 (100%)
    Quote Originally Posted by pittbull View Post
    LMAO!!
    thanks, and i *HOPE* gotm4 can fix this....

    BTW - now i see what it *should* look like, and i really hope my upper isn't ruined
    From the pics, it looks impossible to fix that receiver. Once TOO MUCH material has been removed you can NEVER put it back again, except for something like an epoxy or JB weld, etc..., which I don't think anyone would recommend.

    No matter what extension you use, the over-cut bevel in the receiver will ALWAYS have a ledge that could catch on a bullet tip.

    You need to start preparing for the worst... If GotM4 can fix this one then he is truly an AR Armorer god...

    Rmpl
    "Our destruction... will be from another quarter. From the inattention of the people to the concerns of their government, from their carelessness and negligence..."
    ...Daniel Webster, June 1, 1837

  7. #37
    Join Date
    Nov 2007
    Location
    USA
    Posts
    511
    Feedback Score
    0
    While everyone is at it, notice the "made by a monkey with stone tools" machining marks on the barrel extension in general, compared to the Colt pics, or an LMT, or a Sabre (got two of the three sitting here), etc.

    My German K98 has some non-essential bits that look like that, but they were having the crap bombed out of them by the 8th Air Force at the time. What's Bushmaster's excuse?

  8. #38
    Join Date
    Jun 2006
    Location
    NoVA
    Posts
    10,780
    Feedback Score
    17 (100%)
    Pittbull,

    I got your upper today. I tore it all the way down removing the barrel from the receiver and FSB from bbl (I like starting all the way over 'seeing' everything).

    I'm fairly certain that the upper receiver isn't a Bushmaster (the barrel is Bushmaster 1x7). Whoever cut the ramps cut them way too long top to bottom but didn't change the angle. M4 ramps aren't only longer top to bottom, the angle is also different. I recut, deburred, blended and then polished up and then reblackened the ramps. They look pretty nice now.

    Some other stuff wasn't up to my specs so I removed your rifle extractor spring and blue extractor buffer and installed a Colt gold extractor spring, Colt black buffer and a Crane O-ring. I removed the carrier key and lapped the key, retorqued the carrier key screws and staked them with a MOACKS. I also replaced the gas rings with a new set and checked your headspace and firing pin protrusion (it's all good). It's feeding A-zoom aluminum snap caps just fine out of a new PMAG (I did it 30 times with 4 different snap caps).

    I'll be test firing it on Saturday w/100 rounds.

    I'll let you know how it runs. I'll try your CAR buffer and my H2 buffer (50 rounds each).

    I do recommend that you run a H buffer with this upper. I find that Bushmaster 11.5" uppers run best with H buffers.

    Later,
    Robb
    Chief Armorer for Elite Shooting Sports in Manassas VA
    Chief Armorer for Corp Arms (FFL 07-08/SOT 02)

  9. #39
    Join Date
    Aug 2007
    Location
    Las Vegas
    Posts
    240
    Feedback Score
    1 (100%)
    The words "Thank You" just DON'T cut it.
    gotm4 is THE MAN
    +10

    Thanks, I knew this was one of the best sites on the www.

    BTW - if Robb doesn't do it first, i'll post pics when i get my upper back!
    E=mc^2+/-3db

  10. #40
    Join Date
    Jun 2006
    Location
    Virginia
    Posts
    1,184
    Feedback Score
    2 (100%)
    Quote Originally Posted by pittbull View Post
    The words "Thank You" just DON'T cut it.
    gotm4 is THE MAN
    +10

    Thanks, I knew this was one of the best sites on the www.

    BTW - if Robb doesn't do it first, i'll post pics when i get my upper back!
    I too am UBER IMPRESSED!!!!! I thought for sure that upper was toast...

    GotM4 is truly an AR Armorer god (little g... as only the big man gets a capital G)

    Did you correct the ANGLE to M4 specs or just correct as much as needed to solve problem? Did you have to exceed M4 angles to correct? How do you measure the angle? By eye and experience? Some kind of gauge?

    Rmpl
    "Our destruction... will be from another quarter. From the inattention of the people to the concerns of their government, from their carelessness and negligence..."
    ...Daniel Webster, June 1, 1837
