Thread: New tool idea for dimpling barrels for set screwed low pro gas blocks

  1. #1
    Join Date
    Jan 2007
    Location
    Minnesota
    Posts
    162
    Feedback Score
    0

    New tool idea for dimpling barrels for set screwed low pro gas blocks

    I posted this on TOS but I figured I would get some good input here as well.

    Link to TOS thread

    update 1/24 pics

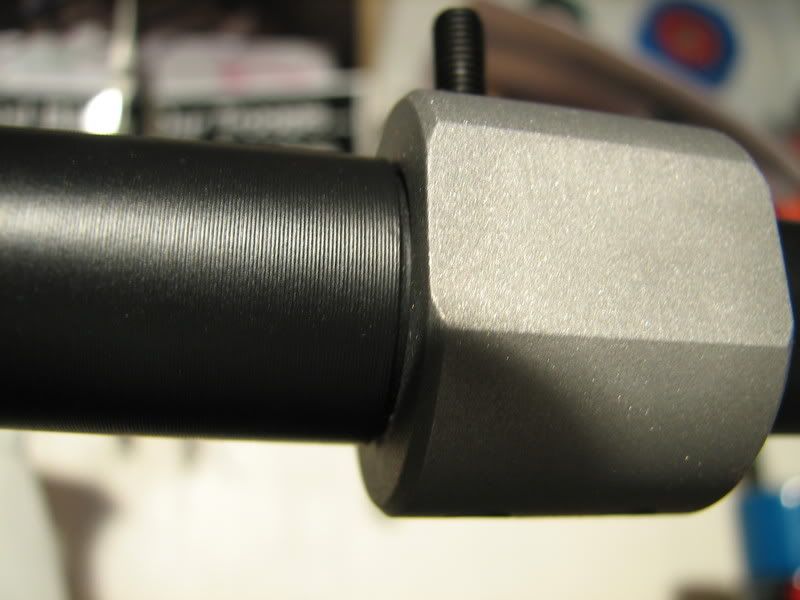

    Installed on barrel, centered with pointed set screw on gasport

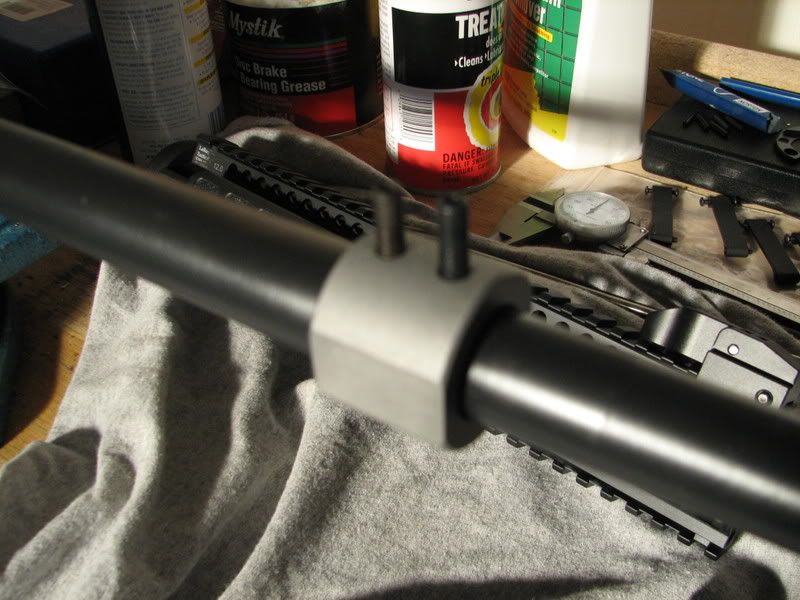

    Soft point screw installed

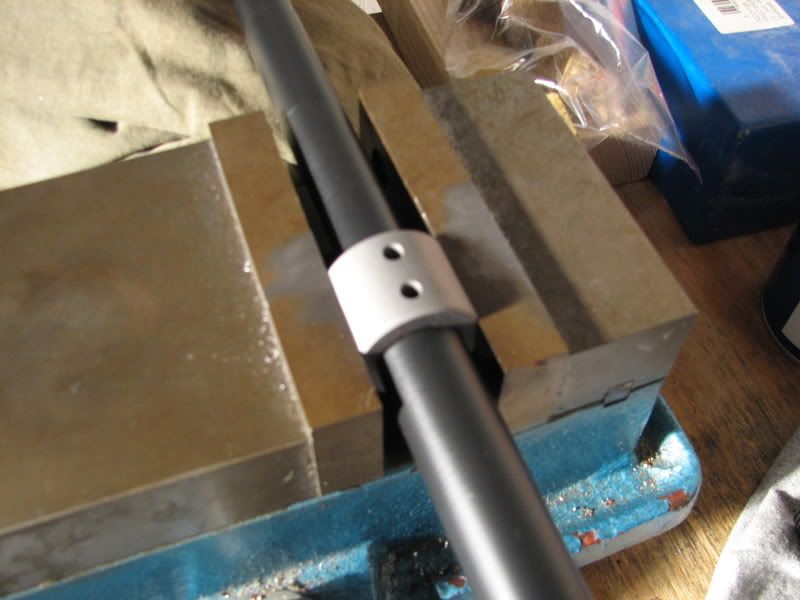

    Into vise, ready to drill.

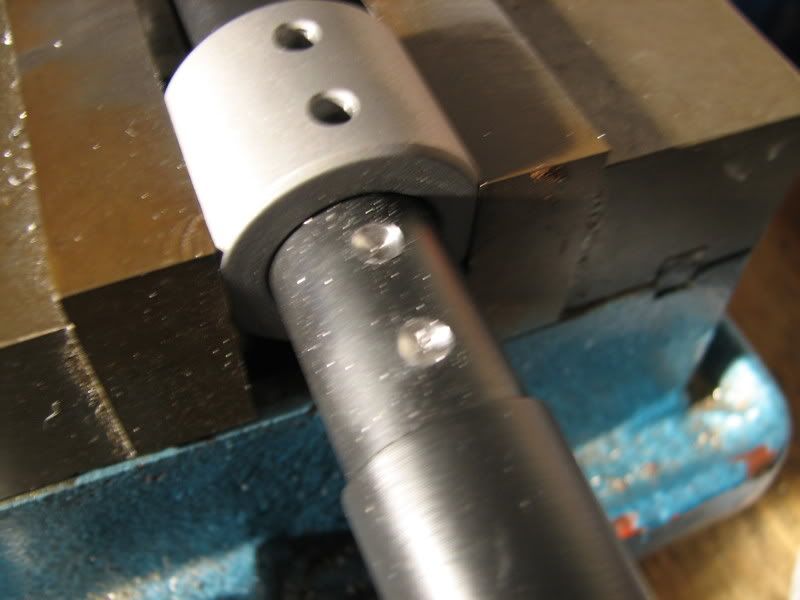

    Dimples started using jig, jig moved back to expose dimples, using soft point set screw to hold jig.


    Enlarge dimples to full 11/64" diameter, deburr with file


    Install gas block.
    Owner - BRD Engineering

  2. #2
    Join Date
    Oct 2006
    Location
    Texas, USA
    Posts
    529
    Feedback Score
    1 (100%)
    Demand depends on price.

    At $30 you will sell a lot of them, at $60 most hobbists won't buy them so you ruled out a large part of the market.

  3. #3
    Join Date
    Jan 2007
    Location
    Minnesota
    Posts
    162
    Feedback Score
    0
    bump for update
    Owner - BRD Engineering

  4. #4
    Join Date
    Aug 2006
    Posts
    166
    Feedback Score
    1 (100%)
    How many different low profile gas blocks share the same screw hole dimensions/location? Will this work with a LaRue gas block, VLTOR gas block, Noveske, etc. ?

    Looks good so far!!
    Last edited by Pinnacle; 01-24-08 at 14:57. Reason: Clarification of questions
    "We need to get over the romance of aligning sights and get to the business of shooting smelly bearded men in the face more efficiently."
    Pat Rogers

  5. #5
    Join Date
    Jan 2007
    Location
    Minnesota
    Posts
    162
    Feedback Score
    0
    Quote Originally Posted by Pinnacle View Post
    How many different low profile gas blocks share the same screw hole dimensions/location? Will this work with a LaRue gas block, VLTOR gas block, Noveske, etc. ?

    Looks good so far!!
    I based it off the LaRue and Vltor. The Noveske is a Vltor so that's not an issue. I assume the others are the same since some high end barrels come pre dimpled.
    Owner - BRD Engineering

  6. #6
    Join Date
    Jun 2006
    Location
    NoVA
    Posts
    10,780
    Feedback Score
    17 (100%)
    Quote Originally Posted by comp1911 View Post
    I based it off the LaRue and Vltor. The Noveske is a Vltor so that's not an issue. I assume the others are the same since some high end barrels come pre dimpled.
    I've seen some gas blocks that don't allow for the handguard cap.
    Chief Armorer for Elite Shooting Sports in Manassas VA
    Chief Armorer for Corp Arms (FFL 07-08/SOT 02)

  7. #7
    Join Date
    May 2006
    Location
    VA/OH
    Posts
    29,630
    Feedback Score
    33 (100%)
    Looks like a nice tool.


    C4

  8. #8
    Join Date
    Jul 2006
    Location
    Northwest IN
    Posts
    3,119
    Feedback Score
    2 (100%)
    Quote Originally Posted by C4IGrant View Post
    Looks like a nice tool.

    That's what SHE said...



    Does a regular drill bit make the right "shape" of dimple for a set screw or is there an ideal mill bit that is used when dimpling barrels at the factory?

    Drill bits are for making clean holes, not dimples. From my experience, you can get a dimple that isn't the same depth at every point on any given circle centered on the dimple.

    Do not taunt Happy Fun Ball...

  9. #9
    Join Date
    Jul 2007
    Location
    SC
    Posts
    1,367
    Feedback Score
    9 (100%)
    Maybe off subject, but some of you might not know to do this. When tightening set screws on anything, torque it down, then back it off and torque it down again, as the 2nd time you will get more of a bite on the metal. It will hold better.

    One a gas block, I'd still pin it.

  10. #10
    Join Date
    Jan 2007
    Location
    Minnesota
    Posts
    162
    Feedback Score
    0
    Quote Originally Posted by SuicideHz View Post
    That's what SHE said...



    Does a regular drill bit make the right "shape" of dimple for a set screw or is there an ideal mill bit that is used when dimpling barrels at the factory?

    Drill bits are for making clean holes, not dimples. From my experience, you can get a dimple that isn't the same depth at every point on any given circle centered on the dimple.

    Standard drills are 118 degree point, the set screws are 90 degree.

    I see your points, I'm not sure how big of an issue it is. The idea of the tool was to locate the holes and align the gas port. I've never had a problem with a standard drill. A ball end mill may also work.
    Owner - BRD Engineering
